※こちらのページは販売を終了した旧製品の情報となります。※

Arcbrain New products
OSの選択にRed Hat Linux 9がございますが、2003年12月にてメーカーの出荷が終了いたました。
後継のLinuxは、Red Hat Enterprise Linux WS/ES/AS または、Fedora Linux となります。
Desktop
　Zephineon 6400IV Series

Intel® XeonTM processor 3.20GHz/1MB L3 cache × 2
2GB dual channel Registered DDR ECC Memory
146GB Ultra320 SCSI 10,000 r.p.m. HDD with SCSI Mobile Rack
ELSA NVIDIA® Quadro® FX 3000
4x DVD±R/RW Drive
PCI-X 64-bit/100MHz x 2, PCI 64-bit/66MHz x 1, PCI 32-bit/33MHz x 2
Gigabit Ethernet × 1
10/100Base-TX Ethernet × 1
Zephineon 6400IV-WXP Microsoft® Window® XP Professional Model
Zephineon 6400IV-W2P Microsoft® Window® 2000 Professional Model　
Zephineon 6400IV-RH9 Red Hat® Linux 9 Personal Model



　Zephineon 6400XGS Series (Max. 16GB)

Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
8GB (Max. 16GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
Ultra320 SCSI 146GB HDD x 1 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 2)
64bit 100MHz PCI-X x 3, 64bit 66MHz PCI-X x 3, SXB (Super Extended Bus) x 1
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 5
DVD combo x 1, FDD x 1
450W power supply, 12cm fan x 1 (rear), 90cm fan x 2 (front)
226mm(W) x 555mm(H) x 440mm(D) (exclude bezel)
　 Zephineon 6400XGS-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XGS-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XGS-W2S Microsoft® Windows® 2000 Server Model


　Vectoran 3200GCK Series
(for cheap CLUSTER, parallel processing & network rendering)
19 inch rack を使わず、コンパクトに並列処理



 Intel® Pentium 4 processor 3.20GHz w/HT (Hyper Threading) technology (FSB800), Intel® 865G chipset
2GB (Max. 4GB) memory (512MB DDR unbuffered x 4)
Intel® Extreme Graphics 2 controller
SATA 80GB HDD 7,200 r.p.m. x 1
5.25" (out) x 2, 3.5" (out) x 1, 3.5" (in) x 2
32bit PCI x 3
Gigabit Ethernet (Intel)  x 2, Serial x 1, USB 2.0 ports x 6 (Rear x 4, front x 2)
 No CD-ROM, no FDD
 250W power supply
Micro ATX case 150mm(W) x 330mm(H) x 390mm(D)
★8cm rear  fan x 2 (排気8cm FAN を2個実装)
★Processor には外気を直接吸気するダクトを装備
Color  Black or Red

Vectoran 3200GCK/B-RH8 Red Hat Linux 8.0 Model
Vectoran 3200GCK/B-RH9 Red Hat Linux 9 Model
Vectoran 3200GCK/B-W2K Microsoft® Windows® 2000 Professional Model
Vectoran 3200GCK/B-WXH Microsoft® Windows® XP Home Edition  Model
Vectoran 3200GCK/B-WXP Microsoft® Windows® XP Professional  Edition  Model

Vectoran 3200GCK/R-RH8 Red Hat Linux 8.0 Model
Vectoran 3200GCK/R-RH9 Red Hat Linux 9 Model
Vectoran 3200GCK/R-W2K Microsoft® Windows® 2000 Professional Model
Vectoran 3200GCK/R-WXH Microsoft® Windows® XP Home Edition  Model
Vectoran 3200GCK/R-WXP Microsoft® Windows® XP Professional  Edition  Model

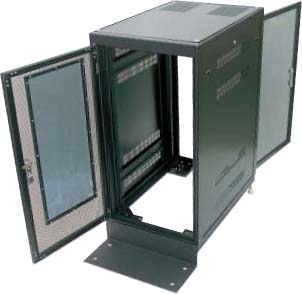

19 inch rack cabinet


クラスタ・システム収容キャビネット
型番 外形寸法(mm) 有効高さ(U) 定価(円)
幅 高さ 奥行
 NSR-22U

600

 1243

900

 22U 250,000

 NSR-32U

 1693 32U 320,000
 NSR-36U 1893 36U 350,000
 NSR-42U 2113 42U 390,000
 NSRC-22U-BK 1243 22U 250,000
 NSRC-32U-BK 1693 32U 320,000
 NSRC-36U-BK 1893 36U 350,000
 NSRC-42U-BK 2113 42U 390,000
 NSRC-22U-W 1243 22U 250,000
 NSRC-32U-W 1693 32U 320,000
 NSRC-36U-W 1893 36U 350,000
 NSRC-42U-W 2113 42U 390,000

特徴
●EIA規格に準拠した19インチサーバーラックです。
●パネルマウント部は、基本フレームと独立している為、移動させて固定することができます。
●サーバーを実装した場合に最適な全面通風孔仕様です。
●前後ドアと側板は施錠が可能です。（鍵付）
●キャスターを装備したままアンカー固定可能なスタビライザーを標準装備しており設置作業が容易です。
●側板はワンタッチで取り外しできます。
●ラックの上面からケーブルを導入できるように天板に入線口を設けています。
●シックなブラック系またはホワイト系の外観は、周囲の環境と調和します。
●専用アクセサリー、または共通アクセサリーを組み込めば、仕様に応じたシステムの構築が可能です。
　

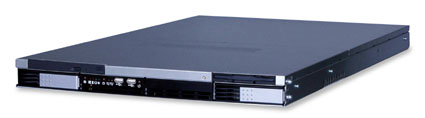

19 inch 1U

　Zephineon 6400XDSR/1U Series
(146GB SCSI HDD x 4 RAID5)


Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 12GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
Adaptec 2015S Zero-channel Ultra320 SCSI RAID
Ultra320 SCSI 146GB HDD x 4 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 4)
64bit 133MHz PCI-X (full length) x 1, 64bit 100MHz PCI-X (low profile) x 1
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 4
 Slim CD-ROM x 1, Slim FDD x 1
 500W cold-swappable power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 653mm(D)
　 Zephineon 6400XDSR/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XDSR/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XDSR/1U-W2S Microsoft® Windows® 2000 Server Model


Zephineon 6400XDAR/1U Series
(200GB SATA HDD x 4 RAID5)


Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 12GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
SATA Zero-channel RAID
SATA 200GB HDD x 4 (Hot-swap SATA drive bays x 4)
64bit 133MHz PCI-X (full length) x 1, 64bit 66MHz PCI-X (low profile) x 1
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 4
 Slim CD-ROM x 1, Slim FDD x 1
 500W cold-swappable power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 653mm(D)
　 Zephineon 6400XDAR/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XDAR/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XDAR/1U-W2S Microsoft® Windows® 2000 Server Model


　Zephineon 6400XDS/1U Series
(146GB SCSI HDD x 3)



Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 12GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
Ultra320 SCSI 146GB HDD x 3 (Hot-swap Ultra160/320 SCA 1 inch SCSI drive bays x 3)
64bit 133MHz PCI-X (full length) x 1, 64bit 100MHz PCI-X (low profile) x 1
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 4
 Slim CD-ROM x 1, Slim FDD x 1
400W cold swap power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 653mm(D)
　 Zephineon 6400XDS/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XDS/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XDS/1U-W2S Microsoft® Windows® 2000 Server Model



　Zephineon 6400XLS/1U Series
(ServerWorks GC-LE chipset, 146GB SCSI HDD x 3)





Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), ServerWorks GC-LE chipset
4GB (Max. 12GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
Ultra320 SCSI 146GB HDD x 3 (Hot-swap Ultra160/320 SCA 1 inch SCSI drive bays x 3)
64bit 133/100MHz PCI-X x 1
Gigabit Ethernet (Broadcom 5704)  x 2, Serial x 2, USB ports x 4
 Slim CD-ROM x 1, Slim FDD x 1
 400W cold swap power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 653mm(D)
　 Zephineon 6400XLS/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XLS/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XLS/1U-W2S Microsoft® Windows® 2000 Server Model


　Zephineon 6133XPA/1U Series
(200GB(Max.) SATA HDD x Max. 2)



Intel® XeonTM processor 3.06GHz (2 CPU), Intel® E7501 chipset
4GB (Max. 8GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
SATA 80GB HDD x 1 (Hot-swap SATA drive bays x 2)
 32bit 66MHz PCI x 1
Gigabit Ethernet (Intel 82540)  x 1, Ethernet (Intel 82550) x 1. Serial x 2, USB 2.0 ports x 2
 Slim CD-ROM x 1, Slim FDD x 1
 350W power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 575mm(D)
　 Zephineon 6133XPA/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6133XPA/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6133XPA/1U-W2S Microsoft® Windows® 2000 Server Model


Optineon 3600-HMI/1U Series
(Dual AMD Opteron 64bit processor)

AMD Opteron processor 1.8GHz w/1MB L2 cache (2CPU), AMD-8111(HyperTransport I/O Hub), AMD-8131(HyperTransport PCI-X Tunnel) chipset
4GB (Max. 16GB) Registered DDR-333 memory
ATI Rage XL 8MB PCI graphic controller
U-DMA 133 80GB HDD x 1 (Cold-swap IDE drive bays x 2)
64bit PCI-X x 1
Gigabit Ethernet (Broadcom® BCM5702)  x 2, Serial x 1, USB ports x 4 (Front x 2, Rear x 2)
 Slim CD-ROM x 1, Slim FDD x 1
 350W PFC内蔵型 cold plug power supply
9.5cm blower fan x 3 (Center x 2, Rear x 1)
430mm(W) x 44mm(H) x 705mm(D)
　 Optineon 4000-HMI/1U-TLA64 Turbolinux 8 for AMD64 Model
　 Optineon 4000-HMI/1U-RHE Red Hat® Enterprise Linux Server Model
　 Optineon 4000-HMI/1U-SLA64 SuSe Linux for AMD64 Model


　Zephineon 6133XSA/1U Series
(Single Intel® XeonTM  processor)



Intel® XeonTM processor 3.06GHz (1 CPU), ServerWorks GC-SL chipset
4GB (Max. 8GB) Registered DDR-266 memory
ATI Rage XL PCI graphic controller
SATA 80GB HDD x 1 (Hot-swap SATA drive bays x 2)
64bit 33MHz PCI x 1
Gigabit Ethernet (Broadcom 5702)  x 1, Ethernet (Intel 82551) x 1. Serial x 2, USB ports x 4
 Slim CD-ROM x 1, Slim FDD x 1
 250W power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 575mm(D)
　 Zephineon 6133XSA/1U-RH9 Red Hat Linux 9 Model
　 Zephineon 6133XSA/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6133XSA/1U-W2S Microsoft® Windows® 2000 Server Model


　Vectoran 3200SGS/1U Series
(Intel® Pentium® 4 processor + 146GB SCSI HDD x 2)



Intel® Pentium 4 processor 3.06GHz (FSB533), Intel 845GE chipset
2GB (Max. 4GB) memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7899W dual-channel Ultra160 SCSI controller
Ultra320 SCSI 146GB HDD x 2 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 2)
 Gigabit Ethernet (Intel® 82540EM)  x 2, Serial x 2, USB 2.0 ports x 2
 Slim CD-ROM x 1, Slim FDD x 1
250W power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 559mm(D)
　 Vectoran 6400SGS/1U-RH9 Red Hat Linux 9 Model
　 Vectoran 6400SGS/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Vectoran 6400SGS/1U-W2S Microsoft® Windows® 2000 Server Model


　Vectoran 3200SCA/1U Series
(Intel® Pentium® 4 processor + SATA HDD x Max. 2)



Intel® Pentium 4 processor 3.20GHz w/HT (Hyper Threading) technology (FSB800), Intel® 875P chipset
2GB (Max. 4GB) memory
ATI Rage XL 8MB PCI graphic controller
SATA 80GB HDD x 1 (Hot-swap SATA drive bays x 2)
Gigabit Ethernet (Intel)  x 2, Serial x 2, USB 2.0 ports x 2
 Slim CD-ROM x 1, Slim FDD x 1
 250W power supply, 10cm blower fan x 2
437mm(W) x 44mm(H) x 559mm(D)
　 Vectoran 6400SCA/1U-RH9 Red Hat Linux 9 Model
　 Vectoran 6400SCA/1U-WS3 Microsoft® Windows® Server 2003 Model
　 Vectoran 6400SCA/1U-W2S Microsoft® Windows® 2000 Server Model


19 inch 2U　

　Zephineon 6400-XGSR/2U Series
(Max. 16GB memory, 146GB SCSI HDD x 6, RAID5 650GB)




 IIntel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 16GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
 Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
 Adaptec 2010S Zero-channel Ultra320 SCSI RAID
Ultra320 SCSI 146GB HDD x 6 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 6)
 64bit 100MHz PCI-X x 3, 64bit 66MHz PCI-X x 3, SXB (Super Extended Bus) x 1 (all low profile)
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 2
 Slim CD-ROM x 1, FDD x 1
dual 400W redundant hot-plug power supply, Hot-plug 8cm fan X 4
437mm(W) x 88mm(H) x 652mm(D)
　 Zephineon 6400XGSR/2U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XGSR/2U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XGSR/2U-W2S Microsoft® Windows® 2000 Server Model



Zephineon 6400-XLSR/2U Series
(Intel®Pentium® 4 + ServerWorks GC-LE chipset,  SCSI x 6 RAID5)




 Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), ServerWorks GC-LE chipset
4GB (Max. 12GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
Ultra320 SCSI 146GB HDD x 6 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 6)
 64bit 133MHz PCI-X (Full length) x 3
Gigabit Ethernet (Broadcom 5704)  x 2, Serial x 2, USB ports x 4
 Slim CD-ROM x 1, FDD x 1
 dual 400W redundant hot-plug power supply, Hot-plug 8cm fan X 4
437mm(W) x 88mm(H) x 652mm(D)
　 Zephineon 6400XLSR/2U-RH9 Red Hat Linux 9 Model
　 Zephineon 6400XLSR/2U-WS3 Microsoft® Windows® Server 2003 Model
　 Zephineon 6400XLSR/2U-W2S Microsoft® Windows® 2000 Server Model


POLYWELL 2118CB  (RAID5 1.3TB IDE RAID Server)

IIntel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 16GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Slim CD-ROM x 1, Slim FDD x 1
ATA 250GB HDD x 8 (Hot-swap ATA drive bays x 8)
 Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 2
3PCI Riser



19 inch 3U

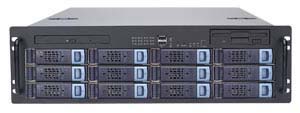

　POLYWELL 3112CB (RAID5 2.2TB IDE RAID Server)

IIntel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 16GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
Slim CD-ROM x 1, Slim FDD x 1
ATA 250GB HDD x 12 (Hot-swap ATA drive bays x 12)
 PCI-X x 6
 Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 2


　Arcbrain Special 3U series


HDD Mobile Rack はオプションとなります
Chassis 基本仕様　(AGP/PCI cardを沢山実装するシステムに最適です)
Color Black or White
Form Factor ATX form factor (Max. 12” x 9.6”）
Slot 7
Bay 5.25" x 2（out）,  3.5" x 1 （out）, 3.5" x 5（in)
Dimension 133(H) x 483 (W) x 526(D) mm
Power Supply 330W (Intel® Pentium 4 processor 対応)、Intel®  XeonTM対応電源(SSI規格)はオプション
FAN ball bearing 8cm x 1,  9cm x 2
M/B, processor, graphics card, OS 等の仕様は、特注を承ります。


　Arcbrain Special 3U series
(Intel® XeonTM processor  M/B (12" x 13") 対応)

Chassis 基本仕様　(AGP/PCI cardを沢山実装するシステムに最適です)
Color Black or White
Form Factor ATX form factor  (Max. 12” x 13”）
Slot 7
Bay 5.25" x 2（out）,  3.5" x 1 （out）, 3.5" x 5（in)
Dimension 133(H) x 483 (W) x 650(D) mm
Power Supply 450W (Intel® XeonTM processor  対応 (SSI 規格) )
FAN ball bearing 9cm x 3,  4cm x 2, 6cm x 1
M/B, processor, graphics card, OS 等の仕様は、特注を承ります。



19 inch 4U　
Zephineon 6400-XGSR/4U Series
(Max. 16GB memory, 146GB SCSI HDD x 6  RAID5)

Intel® XeonTM processor 3.20GHz w/1MB L3 cache (2CPU), Intel® E7501 chipset
4GB (Max. 16GB) Registered DDR-266 memory
ATI Rage XL 8MB PCI graphic controller
 Adaptec AIC-7902 dual-channel Ultra320 SCSI controller
 Adaptec 2010S Zero-channel Ultra320 SCSI RAID
Ultra320 SCSI 146GB HDD x 10 (Hot-swap Ultra160/320 SCA 1" SCSI drive bays x 10)
Gigabit Ethernet (Intel 82546EB)  x 2, Serial x 2, USB ports x 4
 triple redundant  600W power supply
Hot-plug 12cm fan (center)  x 3, 12cm fan (rear) x 1
437mm(W) x 178mm(H) x 615mm(D) (for 19 inch rack)
178mm(W) x 437mm(H) x 615mm(D) (for desk top or desk side)
　

　

　		 Zephineon 6400XGSR/4U-RH9 Red Hat Linux 9 Model
Zephineon 6400XGSR/4U-WS3 Microsoft® Windows® Server 2003 Model
Zephineon 6400XGSR/4U-W2S Microsoft® Windows® 2000 Server Model


Arcbrain Special 4U series


HDD Mobile Rack はオプションとなります
Chassis 基本仕様　(AGP/PCI cardを沢山実装するシステムに最適です)
Color Black or White
Form Factor ATX form factor  (Max. 12” x 9.8”）
Slot 7
Bay 5.25" x 3（out）,  3.5" x 1 （in）
Dimension 177(H) x 483 (W) x 451(D) mm
Power Supply 330W (Pentium 4 processor 対応)、Xeon等対応電源(SSI規格)はオプション
M/B, processor, graphics card, OS 等の仕様は、特注を承ります。


　Arcbrain Special 4U series (Intel® XeonTM processor  M/B (12" x 13") 対応)


HDD Mobile Rack はオプションとなります
Chassis 基本仕様　(AGP/PCI cardを沢山実装するシステムに最適です)
Color Black or White
Form Factor ATX form factor  (Max. 12” x 13”）
Slot 7
Bay 5.25" x 6（out）,  3.5" x 1 （out）, 3.5" x 1 (in)
Dimension 177(H) x 483 (W) x 671(D) mm
Power Supply 450W (Intel® XeonTM processor  対応 (SSI 規格) )
M/B, processor, graphics card, OS 等の仕様は、特注を承ります。

Arcbrain Original Computer
お客様のご要望にかなったCOMPUTERを
ご用意させて頂きます。 		〒151-0073
東京都渋谷区笹塚1丁目62番3号 アルス笹塚 2F-4
株式会社アークブレイン
 TEL 03-3375-8968
FAX 03-3375-8767
mailto : arc-sales@arcbrain.jp
技術的なお問い合わせ先 :
